With over 400 miles of canals and an average elevation barely above six feet, Cape Coral presents a foundation challenge that surface-level solutions simply cannot solve. The city's unique geography, carved from mangrove swamps and underlain by the Tamiami Formation, means that conventional spread footings often encounter low bearing capacity and high compressibility within the first few meters. Our team approaches pile foundation design here not as a generic exercise but as a site-specific problem requiring careful correlation between SPT N-values and the erratic limestone layers that define the local stratigraphy. When designing deep foundations in this part of Lee County, we integrate data from CPT testing to refine skin friction estimates in the sandy overburden, and we rely on seismic refraction surveys to map the top of competent rock where pile tips must bear.

A pile design in Cape Coral succeeds or fails based on whether it correctly accounts for the irregular limestone surface hidden beneath the uniform sand blanket.

Scope of work in Cape Coral

In Cape Coral, we consistently observe that the depth to competent bearing strata varies dramatically within a single lot, sometimes shifting from 20 to 45 feet over a distance of less than 30 yards. This unpredictability demands a pile foundation design approach that does not assume uniform subsurface conditions. Our methodology begins with a detailed stratigraphic model built from mud rotary borings and continuous SPT sampling, strictly following ASTM D1586-18 procedures. We then apply IBC Chapter 18 load combinations and resistance factors to develop axial capacities that account for both skin friction in the loose-to-medium dense sands and end bearing on the underlying limestone. The design process incorporates t-z and Q-z analyses for settlement prediction, which becomes critical when the structure spans across zones with differential pile lengths. For sites near the Caloosahatchee River or the city's saltwater canal network, we also evaluate downdrag potential from consolidating organic silts and specify bitumen coating where necessary. This technical rigor extends to lateral load analysis using p-y curves calibrated to the cemented sand layers that are a hallmark of the Fort Thompson Formation, ensuring that the pile group can resist hurricane-force wind loads without exceeding serviceability deflection limits.

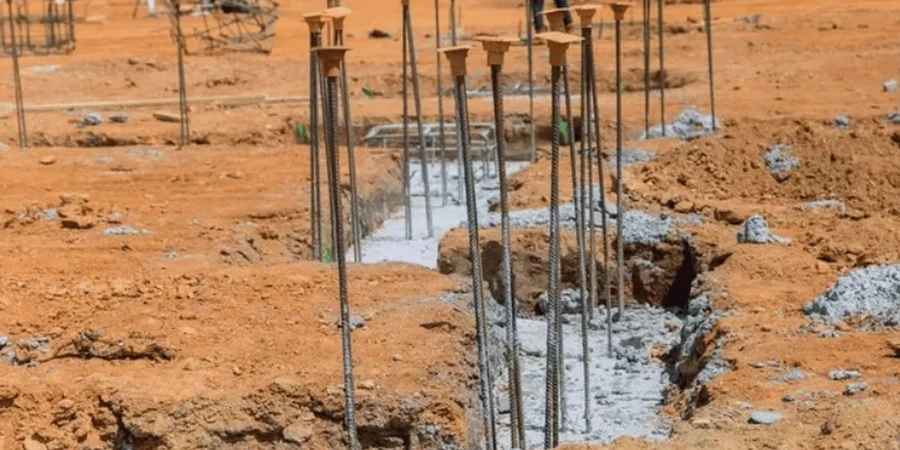

Pile Foundation Design in Cape Coral: Deep Foundations for Coastal Florida Soils

Parameter	Typical value
Bearing Stratum Depth	15 to 45 ft below grade (Tamiami/Fort Thompson Fm.)
Typical Pile Type	Precast prestressed concrete, H-piles, or augered cast-in-place
Design Standard	IBC 2021, ASCE 7-22, ACI 543R-12
SPT N-value at Tip	N60 > 30 (limestone) or refusal on cemented sand
Lateral Load Criteria	Hurricane wind per ASCE 7-22 Risk Category II, V=150 mph
Scour Depth Consideration	2-4 ft for canal-front properties per FHWA HEC-18
Corrosion Protection	Sacrificial steel thickness or epoxy coating in saltwater zones

Demonstration video

Typical technical challenges in Cape Coral

We investigated a three-story condominium project near the intersection of Cape Coral Parkway and Del Prado Boulevard where the initial geotechnical report assumed a continuous limestone shelf at minus 22 feet. During our pre-construction test pile program, a 14-inch square prestressed concrete pile refused prematurely at 19 feet in one corner of the site but punched through 38 feet of soft silt in another corner before encountering rock. The as-designed pile lengths, based on a uniform tip elevation, would have left half the building supported on friction in compressible material while the other half reached firm bearing. This condition, if left uncorrected, would have produced differential settlements exceeding one inch across the column grid, cracking partition walls and jamming elevator guide rails within the first year of service. Our redesign introduced a variable-length pile layout with dynamic testing via PDA on every pile to confirm capacity, and we specified full-length steel reinforcement in piles passing through the organic zone to handle the bending moments induced by lateral spreading of the soft layer. The lesson from this and similar sites across Cape Coral is that a pile foundation design derived solely from a desk study, without iterative field verification, carries an unacceptable risk in the city's transitional coastal geology.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.biz

Applicable standards: IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 – Minimum Design Loads (Wind Speed Maps for Cape Coral), ASTM D1586-18 – Standard Test Method for SPT, ACI 543R-12 – Guide to Design of Concrete Piles, FHWA-NHI-05-042/043 – Design and Construction of Driven Pile Foundations

Our services

Our pile foundation design services cover the full project lifecycle, from feasibility assessment through construction monitoring, adapted to Cape Coral's specific subsurface conditions.

Axial Capacity Analysis

We compute ultimate and allowable capacities using the FHWA-modified Nordlund method for sands and the McVay method for limestone sockets, validated against site-specific PDA and CAPWAP results.

Lateral and Uplift Design

Pile groups are analyzed with GROUP or FB-MultiPier for combined wind uplift and lateral loads, incorporating cracked-section stiffness for concrete piles and p-multipliers for group effects.

Test Pile Program and QA/QC

We design instrumented test pile programs including static load tests to 200% of design load and high-strain dynamic testing on production piles to verify capacity and driveability criteria.

Frequently asked questions

How deep do piles need to go in Cape Coral to reach competent rock?

The depth to the Tamiami or Fort Thompson limestone formations ranges from approximately 15 feet to over 45 feet below existing grade, depending on the specific location within Cape Coral. We determine the exact tip elevation for each pile through a site-specific boring program, as the limestone surface is often irregular and can vary significantly even within a single building footprint.

What type of pile is most suitable for Cape Coral's sandy and limestone soils?

Precast prestressed concrete piles are the most common choice due to their durability in the high groundwater and their ability to achieve high end bearing on limestone. However, for sites with very shallow rock or where vibration during driving is a concern near existing structures, we also evaluate augered cast-in-place piles or steel H-piles as viable alternatives, with the selection based on load requirements and subsurface data.

How do you account for hurricane wind loads in pile design?

We use the ASCE 7-22 wind speed maps, which place Cape Coral in a high-wind region with a design speed of 150 mph for Risk Category II structures. This lateral load, combined with potential storm surge scour at canal-front sites, is applied to the pile group model using p-y curves that represent the stiffness of the local sandy soils, ensuring the foundation can resist overturning and lateral deflection within code limits.
